IP820AP42

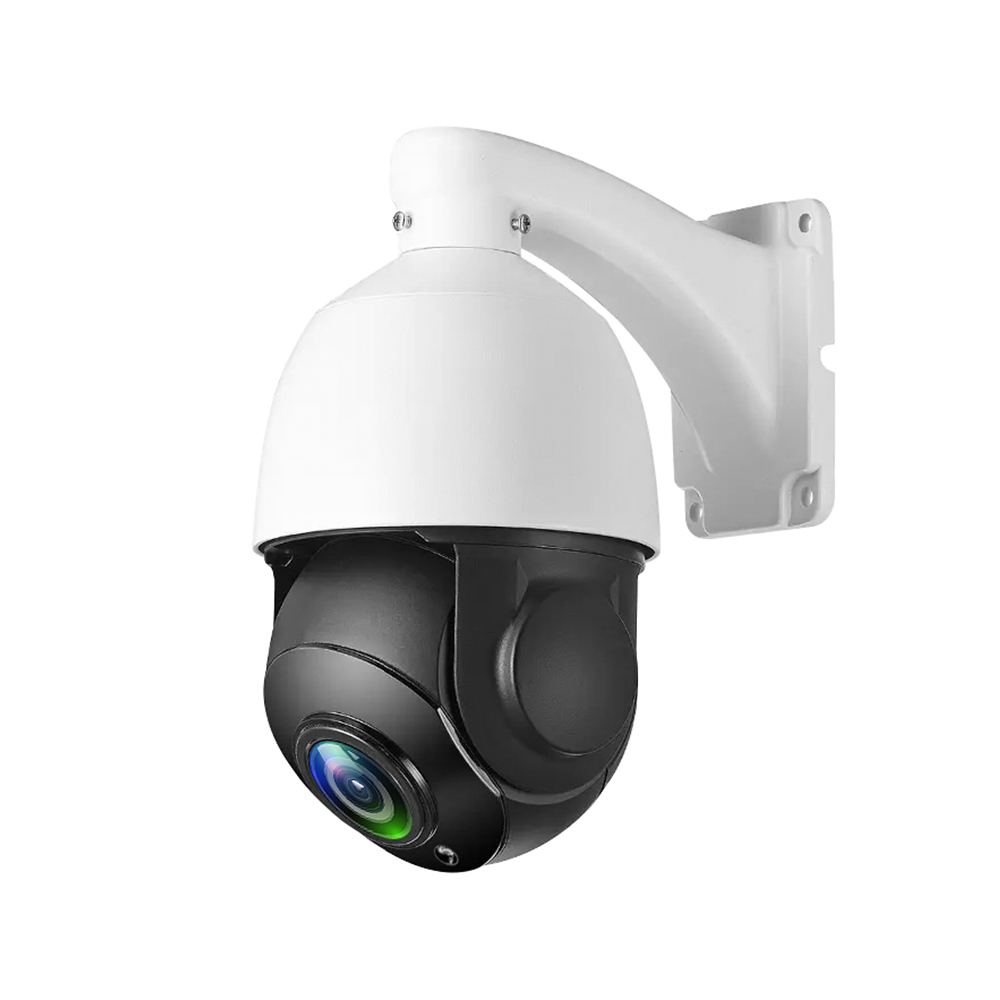

4.5 inch 4K 8.0 MP POE IP PTZ Camera
• High quality image with 8MP,1/2.8’’ CMOS sensor • 3840*2160@20fps in the main stream • H.265+, H.265, H.264, MJPEG • Triple streams • 20X Optical Zoom • Smart intrusion prevention, support humanoid and vehicle detection,humanoid tracking. • Lighthunter technology ensures ultra-high image quality in low illumination environment • Smart IR, up to 1000m IR distance. • DC 12V±25%,PoE++(IEEE802.3 bt) • Two Way Audio,build in microphone and speaker. • Build in TF Card Slot,suport MAX 256GB.
Features:
• High quality image with 8MP,1/2.8’’ CMOS sensor
• 3840*2160@20fps in the main stream
• H.265+, H.265, H.264, MJPEG
• Triple streams
• 20X Optical Zoom
• Smart intrusion prevention, support humanoid and vehicle detection,humanoid tracking.
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 100m IR distance.
• DC 12V±25%,PoE++(IEEE802.3 bt)
• Two Way Audio,build in microphone and speaker.
• Build in TF Card Slot,suport MAX 256GB.
Specification:
| Camera | IP820AP42 | ||||
| Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour: 0.001 Lux (F1.6, AGC ON) 0 Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >56dB | ||||
| Lens | |||||
| Lens type | 4.7 ~ 94mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 10 | ||||
| Optical Zoom | 20 | ||||
| Iris | Auto; F1.6 ~ F3.5 | ||||
| Field of View (H) | 58.9°~2.1° | ||||
| Field of View (V) | 30.81°~1.5° | ||||
| Field of View (D) | 64.8°~4.2° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.7 | 119.3 (391.2ft) | 47.7 (156.5ft) | 23.9 (78.2ft) | 11.9 (39.1ft) | |
| 94 | 2475.0 (8120.1ft) | 990.0 (3248.0ft) | 495.0 (1624.0ft) | 247.5 (812.0ft) | |
| Illuminator | |||||
| IR Range | Up to 100m (328 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | 265+, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 8MP(3840*2160),Max 20fps;3072*2048/2592*1944/2560*1440/2304*1296/1080P/720P@30fps Sub Stream:720*480/D1/VGA/640*360@30fps, Max 30fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 areas per scene | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Events | |||||
| Basic Detection | Motion detection, Humanoid detection, Vehicle Detection. | ||||
| Auto Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | HTTP/DHCP/NTP/ONVIF/P2P ,optional GB28181, RTMP and multiple NVR docking protocols | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||
| User/Host | Up to 8 users. 2 user levels: administrator, common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | LMS | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 6°/s ~ 40°/s | ||||
| Preset speed: 40°/s | |||||
| Tilt Range | 0° ~ 90° (auto reverse) | ||||
| Tilt Speed | 6°/s ~ 30°/s | ||||
| Preset speed: 30°/s | |||||
| Number of Presets | 128 | ||||
| Preset Patrol | 8 patrols, up to 16 presets for each patrol | ||||
| Patrol Stay Time | 4s~12s | ||||
| Preset Image Freeze | Support | ||||
| Home Position | Support | ||||
| Interface | |||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | Yes | ||||
| Built-in Speaker | Yes | ||||
| WIFI | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Certification | |||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863) | ||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | ||||
| General | |||||
| Power | DC12V(±25%,3A), PoE+(IEEE 802.3at) | ||||
| Power consumption: MAX 21W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||

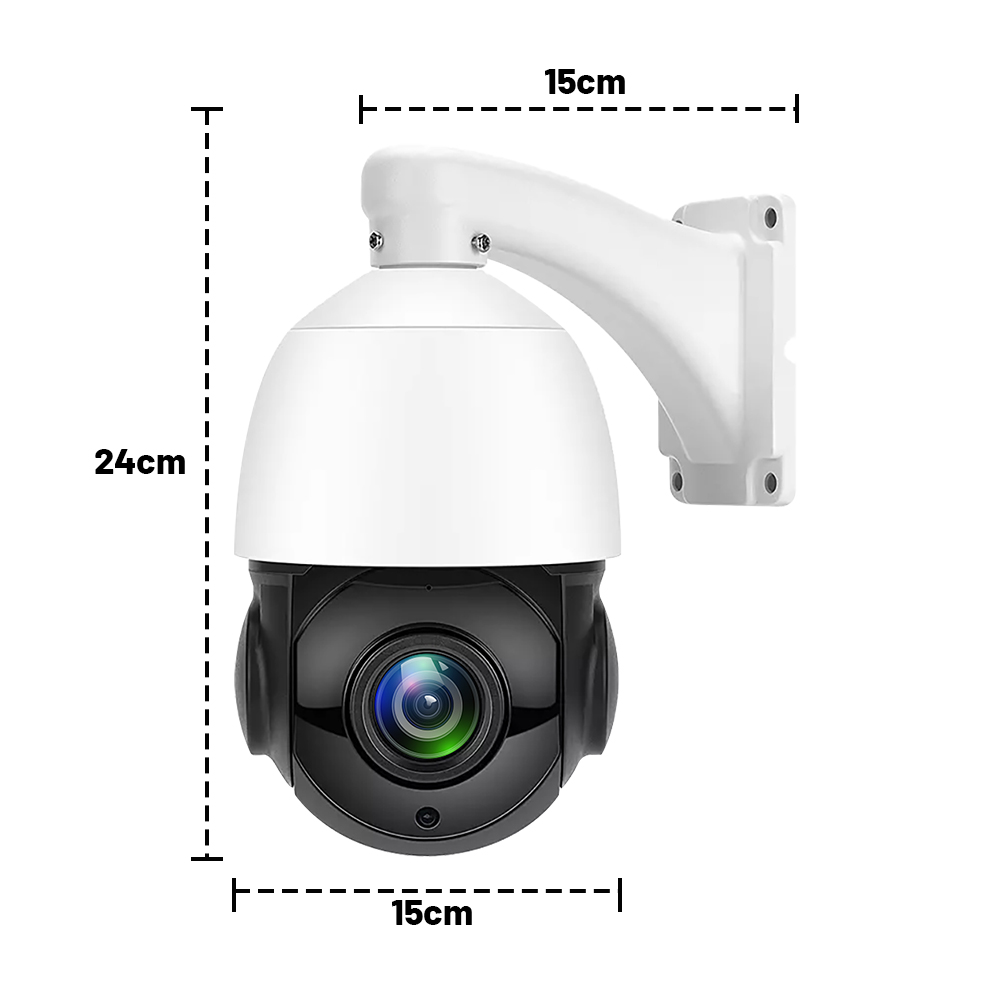

| Dimensions (Ø x H) | Ø135 x 240mm | ||||
| Weight | 1.8kg(3.97lb) | ||||
| Working Environment | -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -40℃~70℃(-40°F ~ 158°F)，Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 6KV | ||||
| Reset Button | No | ||||
