W520HP45B

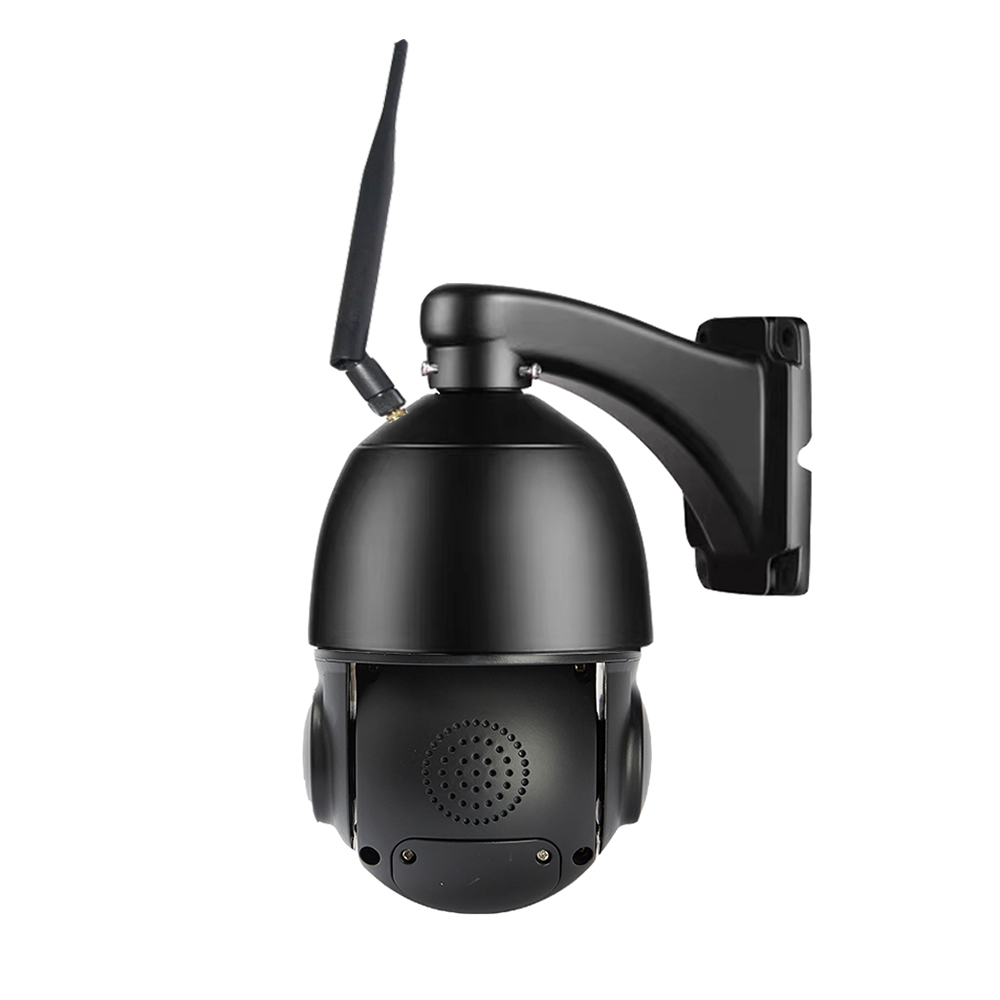

4.5 inch 5MP Outdoor Full Color wifi PTZ Camera 30X Zoom ColorVu
Features:v1/2.8"5MP reolution,low illumination clear and fine images;vHD resolution 2560*1920;vSupport for wifiand wireconnections;vSupport 2D/3D noise reduction,digital wide dynamic;vAdvancedH.265video compression,Super low rate,high defini
Features:
v 1/2.8"5MP reolution,low illumination clear and fine images;
v HD resolution 2560*1920;
v Support for wifi and wire connections;
v Support 2D/3D noise reduction,digital wide dynamic;
v Advanced H.265 video compression,Super low rate,high definition quality of image;
v Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5.
v Support mobile phone monitoring(iOS, Android);
v information pushed
v Motion detecting:Can set 4 independent detection region (1-100 sensitivity can be set)
v Privacy mask.
v Alarm upload pictures and videos to the FTP server,
v P2P APP:CamHi,CamHipro.
v PC Software: HiP2P Client.
v 30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital).
v 4pcs Array Infrared LEDs+2pcs Laser Leds. 120m IR Night Vision.
v 4pcs white leds,60m white light distance.
v Colorful night vision mode.
v Built-in Microphone&Speaker,Support Two Way Audio Talk Back.
v Support TF/Micro SD card, up to 128G(Don't included TF Card).
v Pan tilt rotation, horizontal:355° & vertical:90°.
v Support Cruise Zoom Tracking.Support 8 cruise lines, up to 128 preset points cruise,zoom lens status can be saved during the preset .
v Metal Housing Material,Outdoor Use,Waterproof IP66.
v Support SIM Card,3G/4G.
v TF Card:Max to 128GB
v Humanoid Tracking.
Technical Specifications:
| W520HP45B | |||||
| Camera | |||||
| Sensor | 1/2.8" progressive scan, 5.0 megapixel, CMOS | ||||
| Min. Illumination | Colour:0.001 lux (F1.0,AGC ON) 0 lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | 4.7~94mm, AF automatic focusing and motorized zoom lens | ||||
| Optical Zoom | 20X | ||||
| Max. Aperture | F1.6-F3.6 | ||||
| Field of View (H) | 52.46° ~ 3.67° | ||||
| Field of View (V) | 30.98° ~ 2.07° | ||||
| Field of View (D) | 64.53° ~ 4.33° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.7mm | 88.0 (288.7ft) | 35.2 (115.5ft) | 17.6 (57.7ft) | 8.8 (28.9ft) | |
| 94mm | 1412.7(4634.8ft) | 565.1 (1853.9ft) | 282.5 (927.0ft) | 141.3 (463.5ft) | |
| Illuminator | |||||
| IR Range | Up to 120m (393.7ft) | ||||
| Warm Light Range | Up to 60m (196.85ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 5MP (2560*1920), Max 15fps,4MP (2560*1440), Max 15fps Sub Stream: 640*480,Max 25fps,800*448,Max 25fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Events | |||||
| Basic Detection | Motion detection,Humanoid detection | ||||
| Auto Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.726/G.711 | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 16 kHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，DHCP，DNS，NTP，UPNP，RTSP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | HiP2P Client | ||||
| Web Browser | IE、Google、Firefox | ||||
| Pan & Tilt | |||||
| Pan Range | 0° ~ 355° | ||||
| Pan Speed | 3°/s ~ 40°/s | ||||
| Preset speed: 15°/s | |||||
| Tilt Range | 0° ~ 90° | ||||
| Tilt Speed | 3°/s ~ 40°/s | ||||
| Preset speed: 15°/s | |||||
| Number of Presets | 32 | ||||
| Preset Patrol | 2 patrols, up to 16 presets for each patrol | ||||
| Preset Position Stay Time | 4s ~ 12s | ||||
| Guard Position | Support | ||||
| Interface | |||||
| Built-in Mic | Support | ||||
| Built-in Speaker | Support | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Alarm Light | Support | ||||
| Certification | |||||
| EMC | CE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | ||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
| General | |||||
| Power | DC12V(±25%) | ||||
| Power consumption: MAX 15W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Φ133mm*269mm (Φ5.2”x 10.6”) | ||||
| Weight | 2kg (4.4lb) | ||||
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) | ||||
| Storage Environment | -40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Reset Button | Support | ||||
