4G520HP42

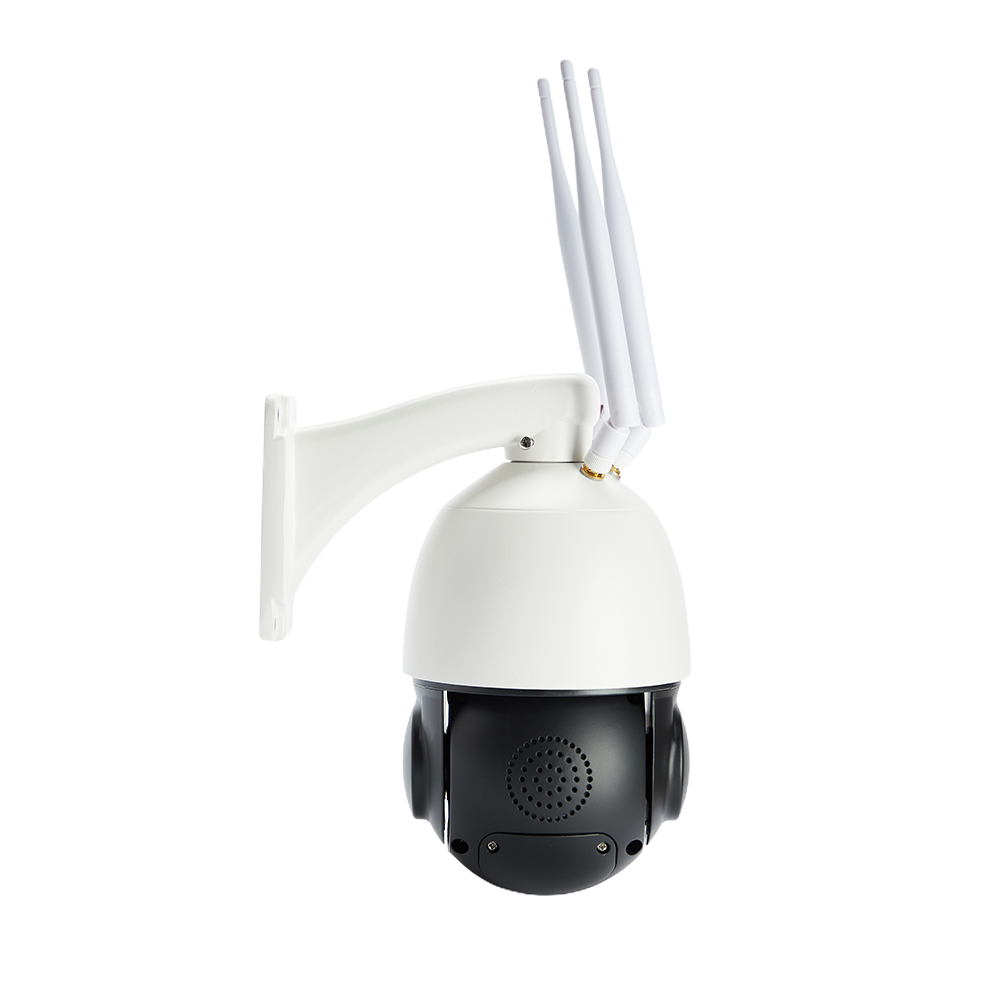

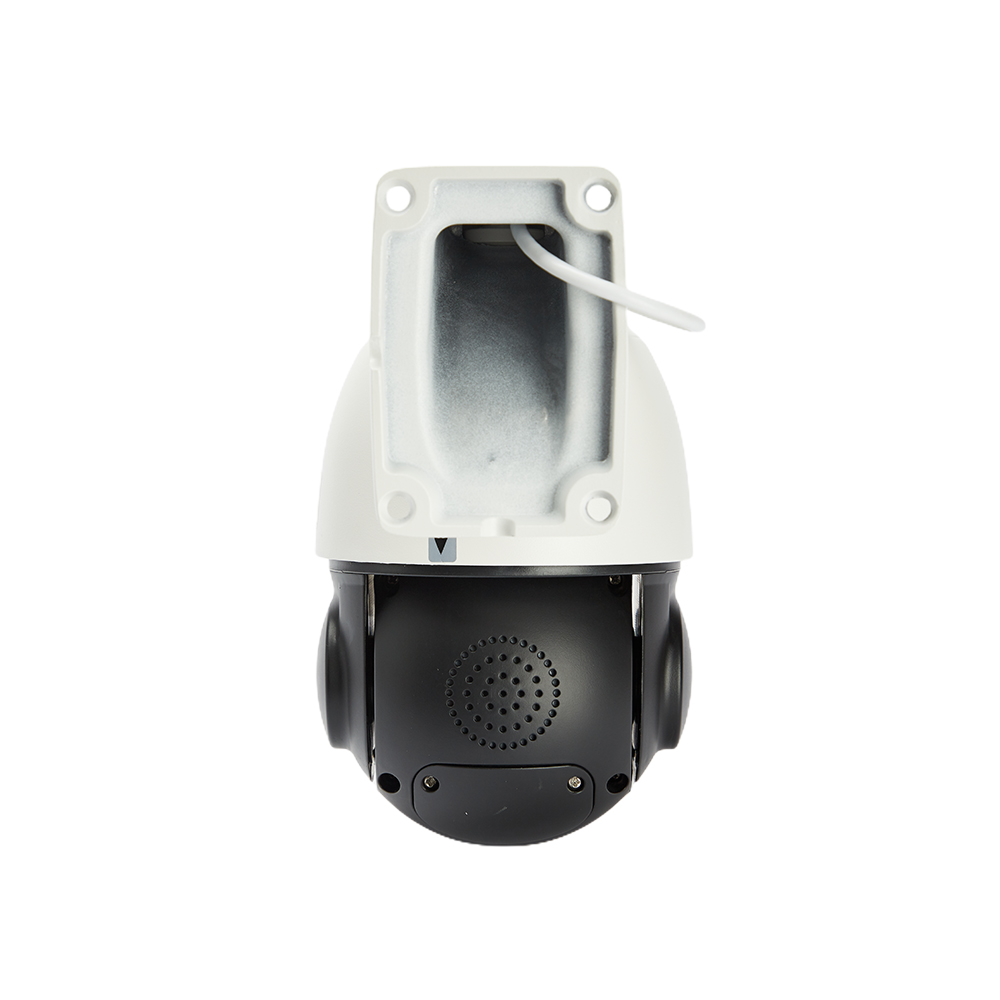

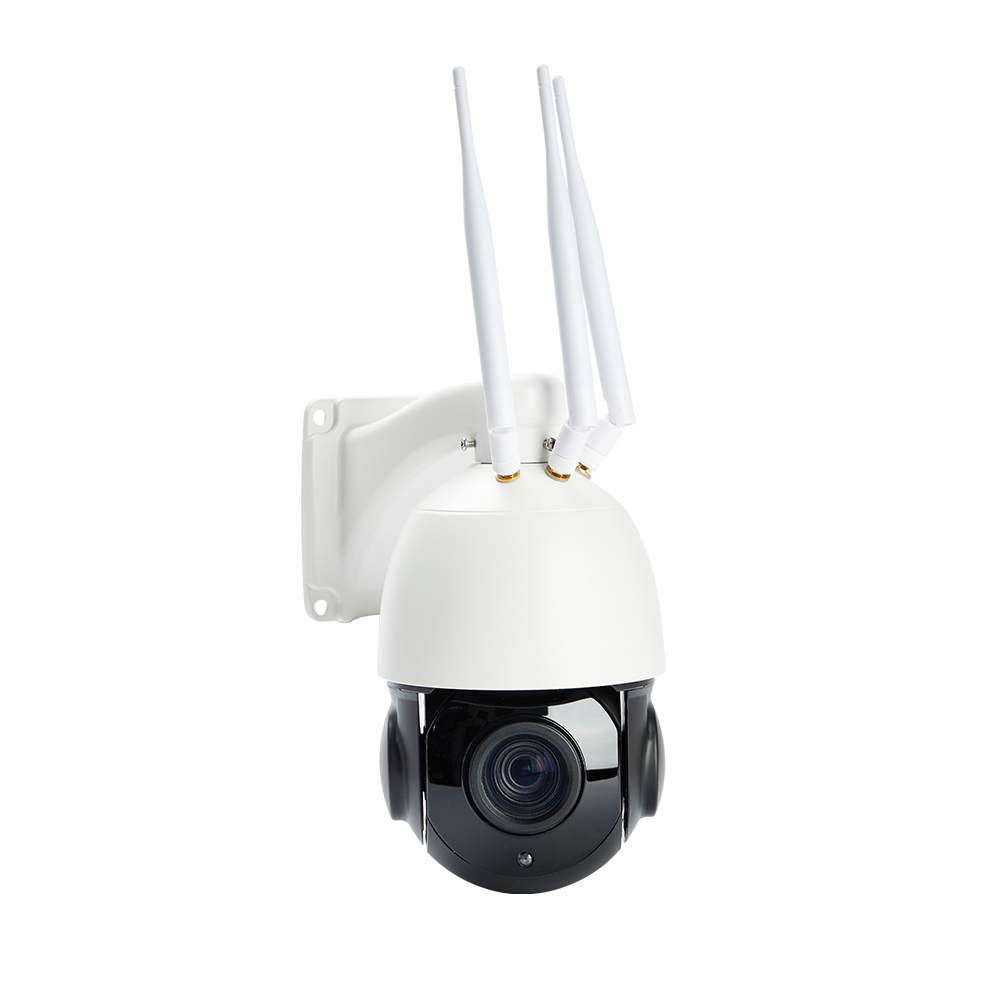

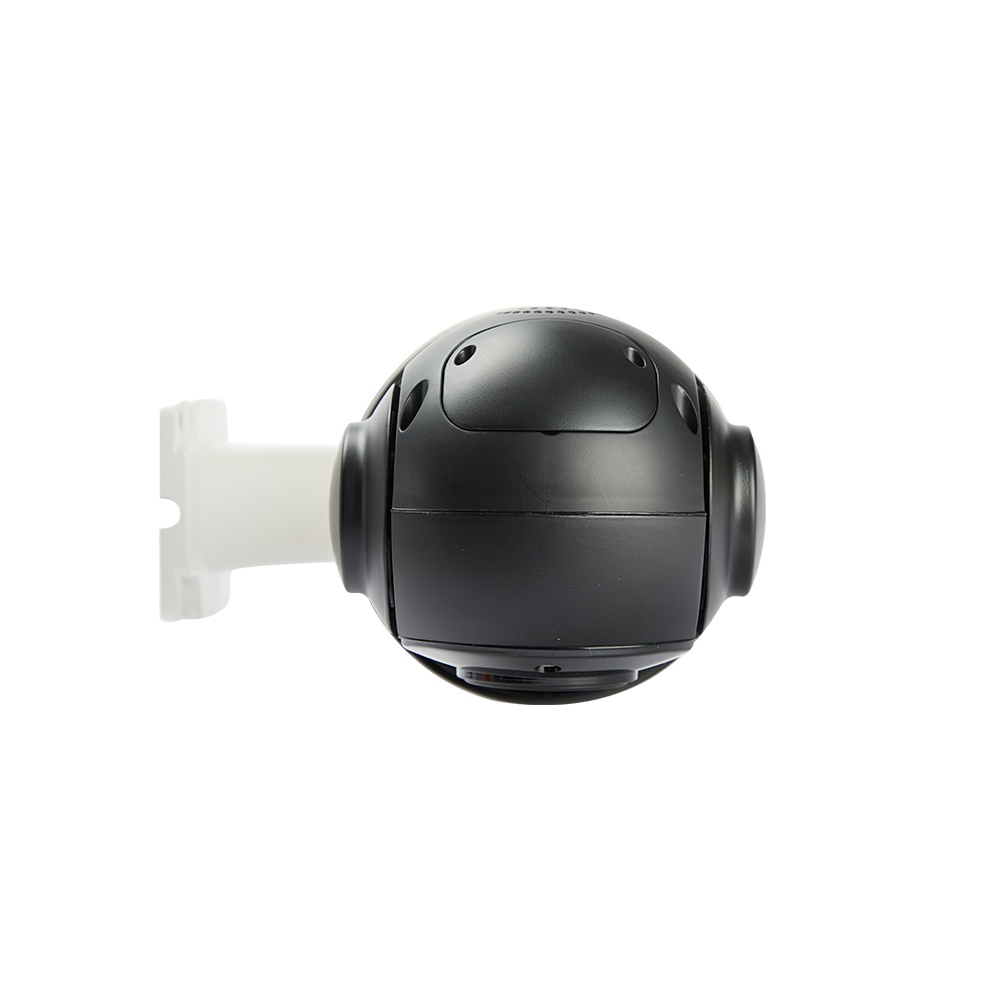

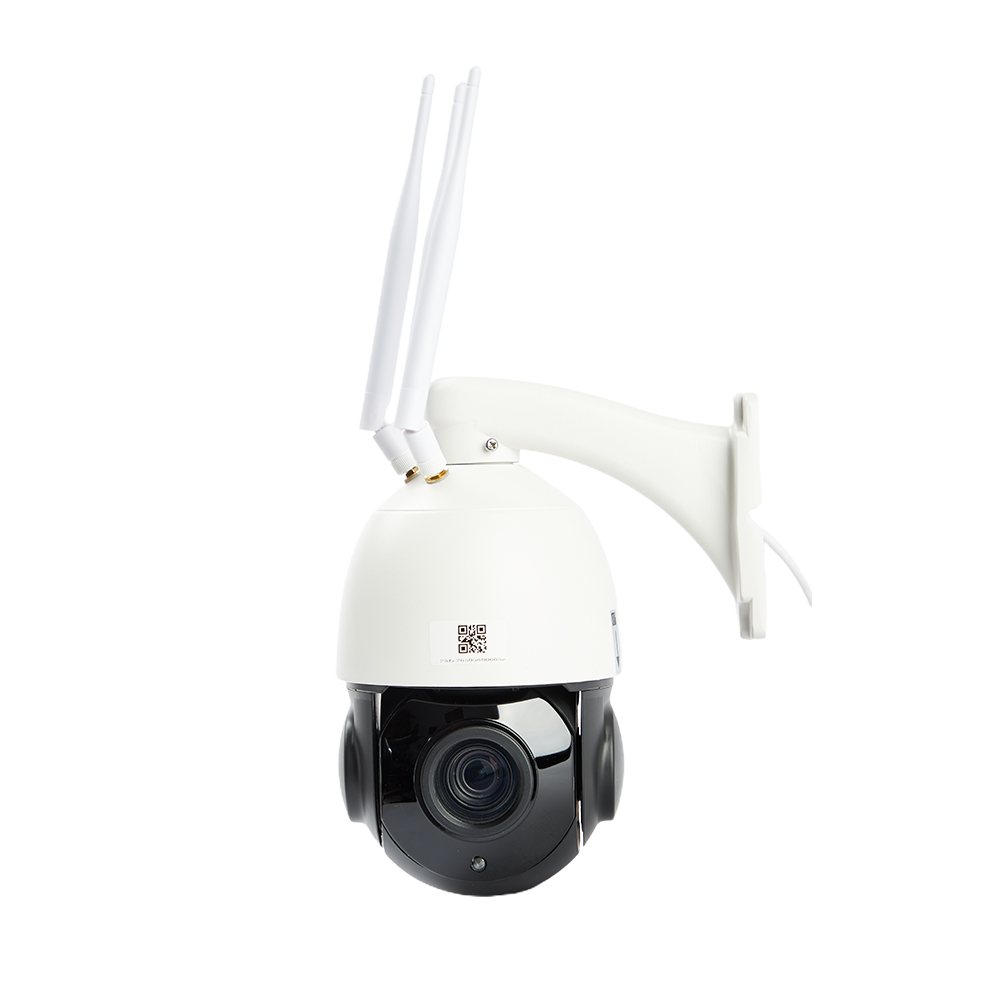

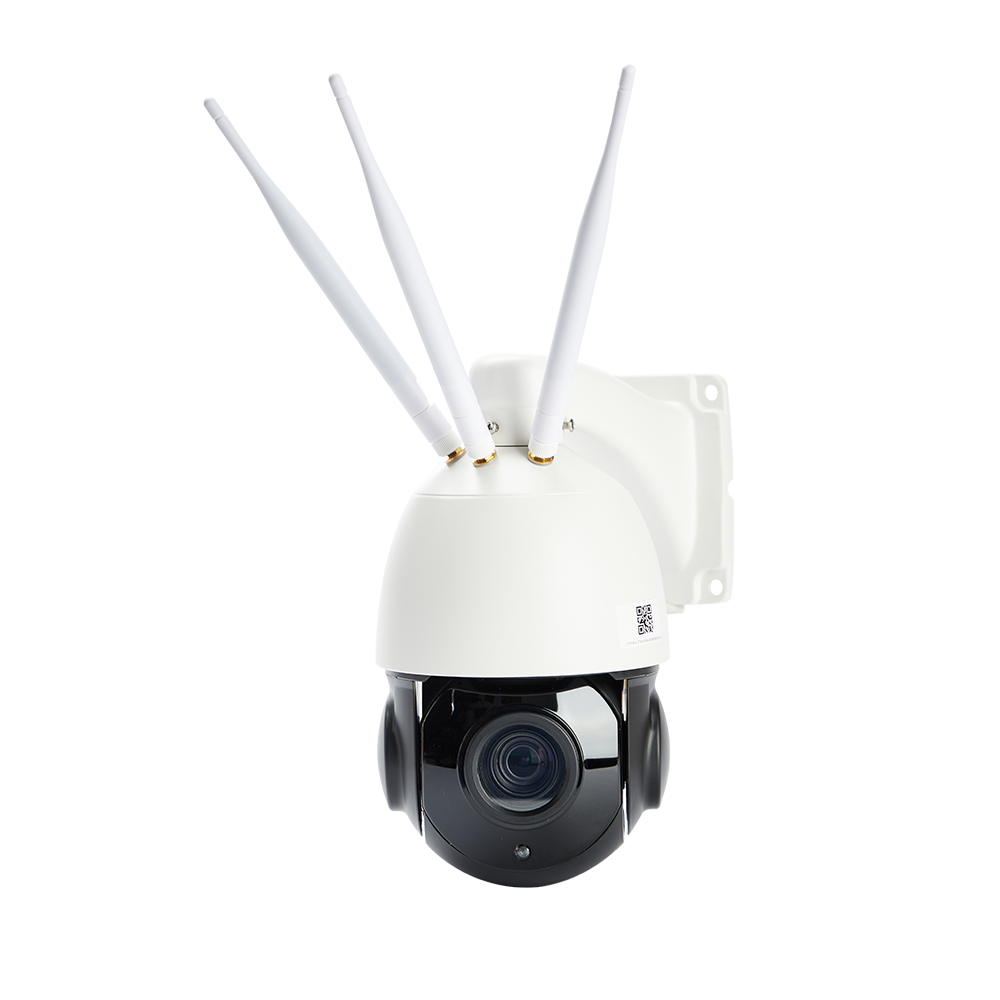

4.5 inch 5MP 4G PTZ Camera 20X Optical Zoom Lens
Features:v1/2.8"5MP reolution,low illumination clear and fine images;vHD resolution 2560*1920;vSupport for 4Gand wireconnections;vSupport 2D/3D noise reduction,digital wide dynamic;vAdvancedH.265video compression,Super low rate,high definiti
Features:
v 1/2.8"5MP reolution,low illumination clear and fine images;
v HD resolution 2560*1920;
v Support for 4G and wire connections;
v Support 2D/3D noise reduction,digital wide dynamic;
v Advanced H.265 video compression,Super low rate,high definition quality of image;
v Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5.
v Support mobile phone monitoring(iOS, Android);
v information pushed
v Motion detecting:Can set 4 independent detection region (1-100 sensitivity can be set)
v Privacy mask.
v alarm upload pictures and videos to the FTP server,
v P2P APP:CamHi,CamHipro.
v PC Software: HiP2P Client.
v 30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital).
v 6pcs Array Infrared LEDs. 100m IR Night Vision.
v Built-in Microphone&Speaker,Support Two Way Audio Talk Back.
v Support TF/Micro SD card, up to 128G(Don't included TF Card).
v Pan tilt rotation, horizontal:355° & vertical:90°.
v Support Cruise Zoom Tracking.Support 2 cruise lines, up to 32 preset points cruise,zoom lens status can be saved during the preset .
v Metal Housing Material,Outdoor Use,Waterproof IP66.
v Support SIM Card,3G/4G.
v TF Card:Max to 128GB
v Humanoid Tracking.
Technical Specifications:
4G520HP42 | |||||
Camera | |||||
Sensor | 1/2.8", 5.0 megapixel, progressive scan, CMOS | ||||
Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR | ||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
WDR | Digital wide dynamic | ||||
S/N | >56dB | ||||
Lens | |||||
Lens | 4.7 ~ 94mm, AF automatic focusing and motorized zoom lens | ||||
Digital Zoom | 10 | ||||
Optical Zoom | 20 | ||||
Iris | Auto; F1.6 ~ F3.6 | ||||
Field of View (H) | 51.9° ~ 3.0° | ||||
Field of View (V) | 39.7° ~ 2.2° | ||||
Field of View (D) | 63.1° ~ 3.7° | ||||
DORI | |||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
4.7 | 143.1(469.5ft) | 57.2(187.8ft) | 28.6(93.9ft) | 14.3(46.9ft) | |
94 | 3116.3 (10223.9ft) | 1246.5(4089.6ft) | 623.3(2044.8ft) | 311.6(1022.4ft) | |
Illuminator | |||||
IR range | Up to 100m(328ft) | ||||
Wavelength | 850nm | ||||
IR On/Off Control | Auto/Manual | ||||
Video | |||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
Frame Rate | Main Stream: 5MP(2560*1920),Max 15fps; 4MP(2560*1440),Max 15fps; Sub Stream: 640*480, Max 25fps;800*448, Max 25fps; | ||||
Video Bit Rate | 128 Kbps~16 Mbps | ||||
U-code | Support | ||||
ROI | Up to 8 areas | ||||
Video stream | Double streams | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | 24 areas, up to 4 areas per scene | ||||
Image | |||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
Digital noise reduction | 2D/3D DNR | ||||
Smart IR | Support | ||||
Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
HLC | Support | ||||
BLC | Support | ||||
Intelligent | |||||
Smart Intrusion Prevention | Motion detection, Humanoid detection | ||||
Events | |||||
Basic Detection | Motion detection, Humanoid detection | ||||
Auto Tracking | Support | ||||
General Function | Watermark, IP Address Filtering, , Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Audio | |||||
Audio Compression | G.726/G.711 | ||||
Audio Bitrate | 64 Kbps | ||||
Two-way Audio | Support | ||||
Suppression | Support | ||||
Sampling Rate | 8 kHz | ||||
Storage | |||||
Edge Storage | Micro SD, up to 128 GB | ||||
Network Storage | ANR,NAS(NFS) | ||||
4G | |||||
4G Versions | Asia/Europe/USA Optional | ||||
Asia 4G Bands | B1,B3,B5,B34,B39,B40,B41 | ||||
Europe 4G Bands | B1,B3,B5,B7,B8,B20 | ||||
USA 4G Bands | B2,B4,B5,B12,B13,B14,B17,B25,B26,B30,B41,B66 | ||||
SIM Card Type | MicroSIM | ||||
Network | |||||
Protocols | TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,DHCP,FTP,DNS,NTP,UPNP,RTSP | ||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
User/Host | Up to 6 users | ||||
Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
Client | HiP2P Client | ||||
Web Browser | IE、Google、Firefox | ||||
Pan & Tilt | |||||
Pan Range | 355° | ||||
Pan Speed | 6°/s ~ 40°/s | ||||
Preset speed: 15°/s | |||||
Tilt Range | 0° ~ 90° (auto reverse) | ||||
Tilt Speed | 6°/s ~ 40°/s | ||||
Preset speed: 15°/s | |||||
Number of Presets | 32 | ||||
Preset Patrol | 2 patrols, up to 2 presets for each patrol | ||||
Preset Point Stay Time | 4s~12s | ||||
Preset Image Freeze | No | ||||
Guard Position | Support | ||||
Interface | |||||
Built-in Mic | YES | ||||
Built-in Speaker | YES | ||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
Certification | |||||
EMC | CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | ||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
General | |||||
Power | DC12V (±25%) | ||||
Power consumption: Max 8W | |||||
Power Interface | Wires with cold-pressed terminal | ||||
Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) | ||||
Weight | 2kg(4.4lb) | ||||
Working Environment | -40℃~70℃(-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) | ||||
Storage Environment | -40℃~70℃(-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) | ||||
Surge protection | 6KV | ||||
Reset Button | Support |
