IP801MD01

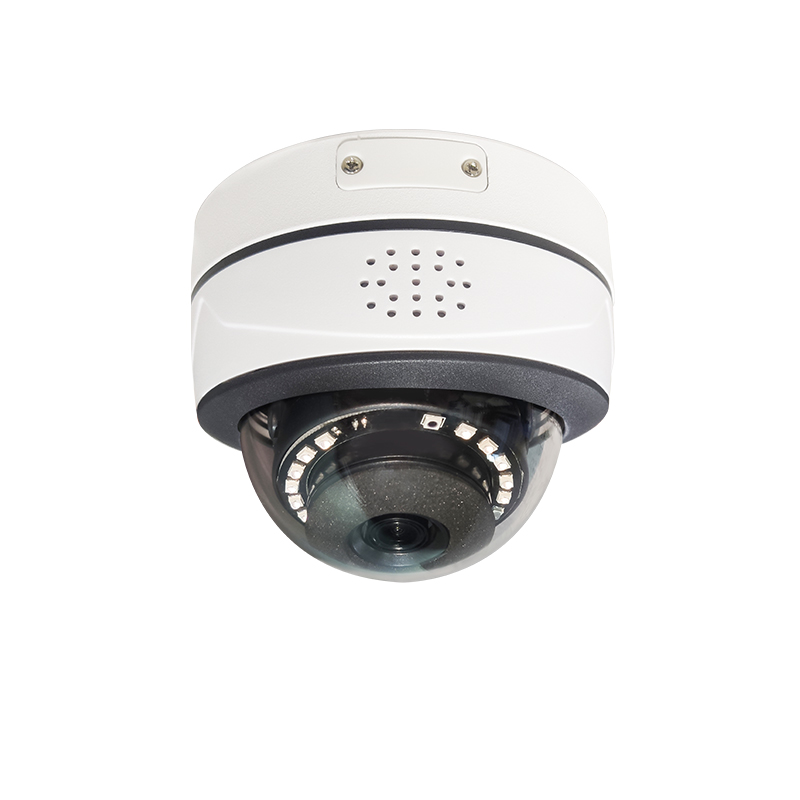

8MP Vandal-resistant Network IR Fixed Dome Camera
CameraImage Sensor1/2.5”8Megapixel progressive scan CMOSEffective Pixels3840(H)x2160(V)RAM/ROM512MB/32MBScanning SystemProgressiveElectronic Shutter SpeedAuto/Manual, 1/3(4)~1/100000sMinimum Illumination0.03Lux/F2.5( Color,1/3s,30IRE)0.3Lux/F2.5( Color,1/30s,30IRE)0Lux/F2.5(IR on)S/N RatioMor
Features:
Day/night functionality
Smart IR, up to 30 m (98 ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Ultra 265+,H.265, H.264, MJPEG
ROI (Region of Interest)
Built-in Mic & Speaker
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67
Specification:
| IP801MD01 | ||||||
| Camera | ||||||
| Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | |||||
| Lens | 2.8mm@F2.0 | 3.6mm@F2.0 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| 2.8 | 46.7 | 18.7 | 9.3 | 4.7 | ||
| 4.0 | 66.7 | 26.7 | 13.3 | 6.7 | ||
| Angle of View (H) | 112.7° | 86.5° | ||||
| Angle of View (V) | 60.1° | 44.1° | ||||
| Angle of View (O) | 146.5° | 106.4° | ||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.02Lux ( F2.0, AGC ON) 0Lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >52dB | |||||
| IR Range | Up to 30m (98ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Defog | Digital Defog | |||||
| WDR | DWDR | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main Profile | |||||
| Frame Rate | Main Stream:8MP(3840*2160)@20fps,3072*2048/2592*1944/2560*1440/2304*1296/1080P/720P,Max 30fps; Sub Stream: 720*480/D1/VGA/640*360, Max 30fps; | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 8 areas | |||||
| ROI | Up to 2 areas | |||||
| Motion Detection | Up to 4 areas | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180° | |||||
| Dewarping | Supported | |||||
| HLC | Supported | |||||
| BLC | Supported | |||||
| Network | ||||||
| Protocols | HTTP/RTSP/DHCP/NTP/ONVIF/P2P | |||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||||
| Client | LMS | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||
| Interface | ||||||
| Network | 10/100M Base-TX Ethernet | |||||
| Certifications | ||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||
| General | ||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||
| Power consumption: Max 4.5W | ||||||
| Dimensions (Ø x H) | Φ109 x 81mm (Ø4.3” x 3.2”) | |||||
| Net Weight | 0.45kg (0.99lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||
| Surge Protection | 2KV | |||||
| Ingress Protection | IP67 | |||||
| Vandal Resistant | IK10 | |||||
