Features:

v 1/2.8"5MP reolution,low illumination clear and fine images;

v HD resolution 2560*1920;

v Support for wifi and wire connections;

v Support 2D/3D noise reduction,digital wide dynamic;

v Advanced H.265 video compression,Super low rate,high definition quality of image;

v Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5.

v Support mobile phone monitoring(iOS, Android);

v information pushed

v Motion detecting:Can set 4 independent detection region (1-100 sensitivity can be set)

v Privacy mask.

v Alarm upload pictures and videos to the FTP server,

v P2P APP:CamHi,CamHipro.

v PC Software: HiP2P Client.

v HD 3.6mm lens(2.8mm optional).

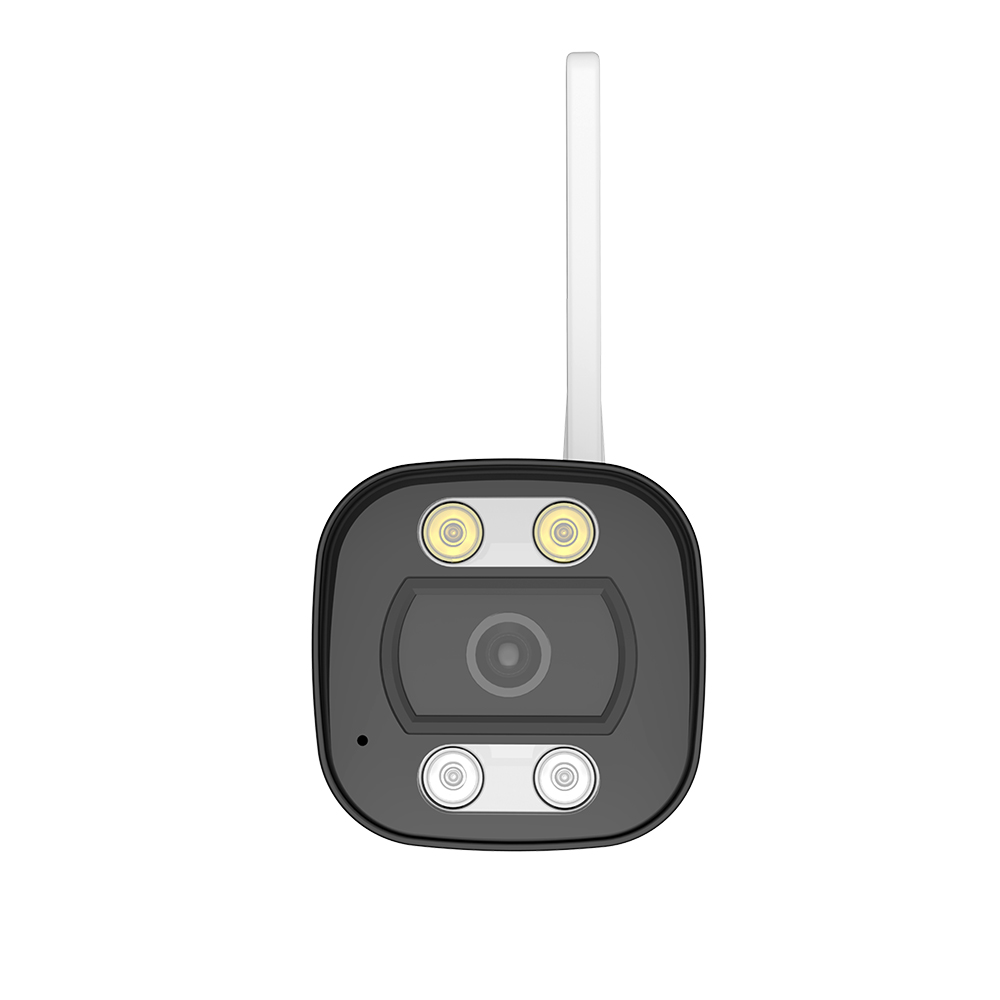

v 4pcs Array Infrared LEDs+4pcs White Leds. 20m IR Night Vision.

v 15m white light distance.

v Colorful night vision mode.

v Built-in Microphone&Speaker,Support Two Way Audio Talk Back.

v Support TF/Micro SD card, up to 128G(Don't included TF Card).

v Metal Housing Material,Outdoor Use,Waterproof IP66.

v TF Card:Max to 128GB





Technical Specifications:

Camera Module

System structure

GK7205V300

Sensor

5.0M 1/2.8’ IMX335

Shutter Speed

1/50(1/60)s to 1/10,000s

Image output

Main stream: 2560*1920@15fps, 2560*1440@15fps; sub-stream: 800*600@15fps 800*480@15fps,

Day and night

Support IR-CUT

Noise reduction

Support 2D/3D

Wide dynamic

Support digital Wide dynamic

Lens

Lens

3.6mm

Angel of view

70°

Max.Aperture

F1.6

Video

Max.Resolution

2560*1920

Main Stream

2560*1920@15fps

Sub Stream

800*600@15fps

Video compression

H.265 coding

SVC

yes

Video bit rate

32Kbps~6Mbps

Audio

Audio compression

G.711,support bidrectional talk,audio&video synchronization

Audio interface

1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone

Smart Features

Intelligence analysis

Supporting humanoid detection

Network

Network Support

2.4 GHz  to  2.4835 GHz/IEEE802.11b. 802.11g. 802.11n Draft

Security Measures

Authenticated username and password, MAC address binding, HTTPS encryption,

802.1X authenticated access, IP address filter

Client

HiP2P Client

Web Browser

IE 10+, Chrome 57+, Firefox 52+, Safari 12+

ONVIF

Yes

Network protocol

TCP/IP、UDP/IP、HTTP、ICMP、FTP、EMAIL、TELNET

Interface

Communication Interface

1*RJ45

POE

No

Supplement Light


IR Distance

20m

Smart IR

yes

White Leds

yes, colorful night vision mode optional

General

Power

DC12V

Operating Conditions

Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%

Size(mm)

239*137*215

Weight(kg)

0.5KG

Package Size(mm)

20*10*10

Package Weight(kg)

0.6KG

Web Client Language

12 languages: Simplified Chinese,traditional Chinese,English, Russian,German,Italian,French,,Portuguese, Spanish,

Korean, Portuguese (Brazil),Czech

Approval

Protection

Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to

Gnd, ±3kV Line to Line, IEC61000-4-5, IP66 Standard
