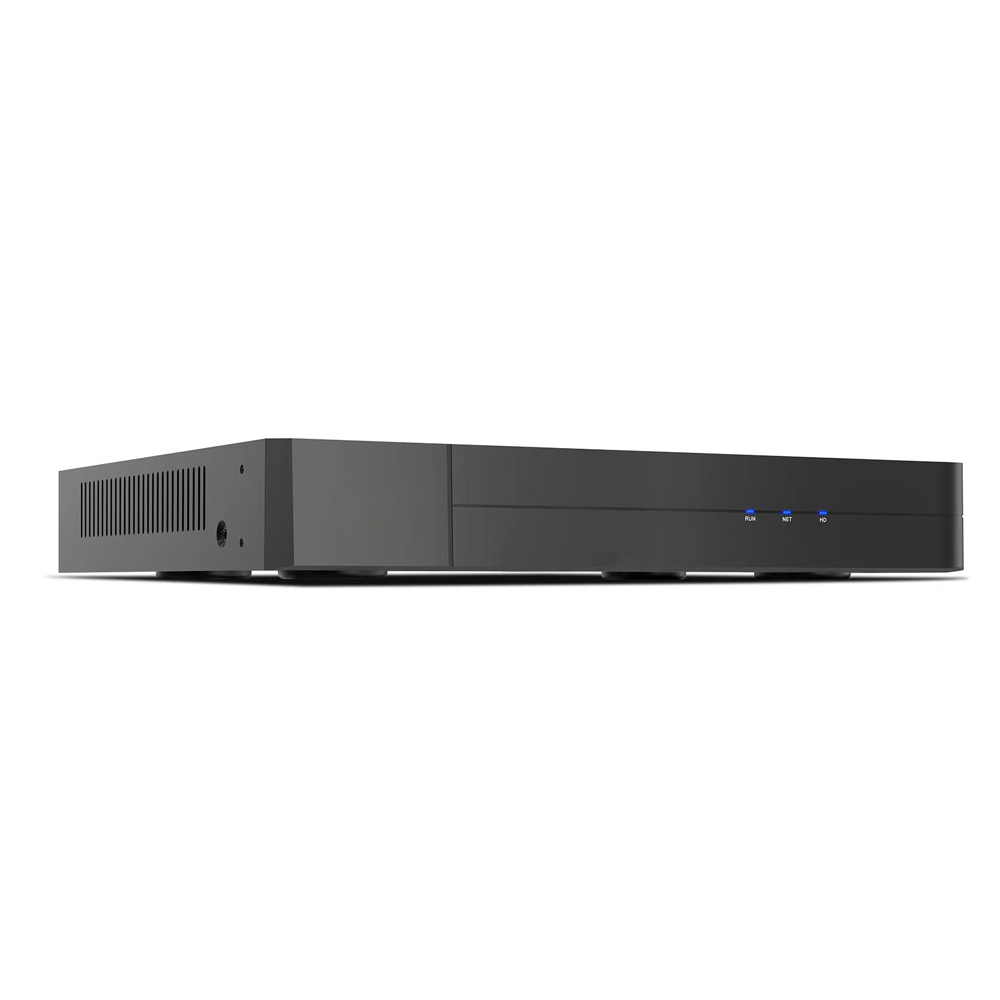

XVR301-F Series
H.265 4CH/8CH 5 in 1 DVR 1080P
Features:*Support H.265/H.264 video formats*Support audio over coaxial cable(only for TVI cameras)*Support analog camera upgrade over coaxial cable*Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access*4/8-channel BNC input*Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080*HDMI and
Features:
*Support H.265/H.264 video formats
*Support audio over coaxial cable(only for TVI cameras)
*Support analog camera upgrade over coaxial cable
*Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
*4/8-channel BNC input
*Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
*HDMI and VGA simultaneous output
*Long transmission distance over coaxial cable
*Support mainstream cameras of ONVIF and RTSP protocols
*The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Specification:
| Model | XVR301-04F | XVR301-08F | ||||
| Video/Audio Input | ||||||
| Analog Video Input | 4-ch, BNC | 8-ch, BNC | ||||
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 6MP | 2-ch(only IP up to 10ch), each channel up to 6MP | ||||
| Supported Analog Camera Types | Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input | Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input | ||||
| Audio Compression | G.711U | |||||
| Video/Audio Output | ||||||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||||
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |||||
| Synchronous Playback | HD:4-ch SD:4-ch | HD:8-ch SD:8-ch | ||||
| Live view display | HDMI/VGA: 1/4/6/8/9 | HDMI/VGA: 1/4/6/8/9/16 | ||||
| Network | ||||||
| Incoming Bandwidth | 24Mbps (Up to 32Mbps after all analog channel conversion) | 24Mbps (Up to 40Mbps after all analog channel conversion) | ||||
| Outgoing Bandwidth | 48Mbps | 64Mbps | ||||
| Remote Users | 128 | |||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | |||||
| Encoding | ||||||
| Recording Resolution | 1080P Lite/720P/D1 | 1080P Lite/720P/D1 | ||||
| Recording Frame Rate | Main stream | Sub stream | Main stream | Sub stream | ||
| 1080P Lite@25fps | D1@25fps | 1080P Lite@15fps | D1@12fps | |||
| 720P@30fps | D1@30fps | 720P@15fps | D1@15fps | |||
| Audio Sample Rate | 8KHz,16 bit per channel | |||||
| Audio Bit Rate | 64Kbps per channel | |||||
| Decoding | ||||||
| Capability | Analog:4 x 1080P Lite@25, 4 x 720P@30 IP: 1 x 6MP@20, 2 x 1080P@30 | Analog:8x 1080P Lite @15, 8x 720P @15 IP: 1 x 6MP@20, 2 x 1080P@30 | ||||
| Hard Disk | ||||||
| SATA | 1 SATA interface | |||||
| Capacity | Up to 6TB for each HDD | |||||
| General Alarm | ||||||
| General Alarm | Motion detection | |||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||
| External Interface | ||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||||
| USB Interface | Rear panel: 2 x USB2.0 | |||||
| General | ||||||
| Power Supply | 12V DC Power Consumption: ≤ 10 W( without HDD ) | |||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||||
| Dimensions(W×D×H) | 190mm × 202mm × 42mm (7.5" × 7.9" × 1.6") | |||||
| Weight ( without HDD ) | ≤0.6 Kg ( 1.32lb ) | |||||
| Certification | ||||||
| Certification | UL/CE/FCC /RoHS /WEEE | |||||
